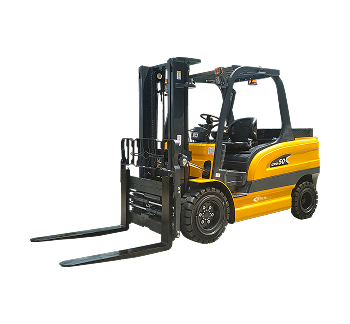

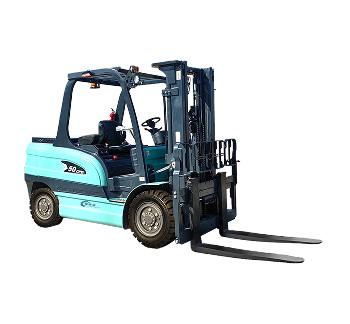

5 ton electric forklift
It is powered by electricity, has strong power and produces no exhaust gas during operation. It has minimal impact on the air quality of indoor or closed warehouse working environments, and helps protect the health of operators.
Related products
Product features
It is powered by electricity, with no exhaust gas emissions during operation, which meets strict environmental regulations and is especially suitable for indoor places with high environmental requirements.
It has high energy conversion efficiency, and can save considerable energy costs over a long period of time compared to internal combustion forklifts.
The noise level of the motor during operation is much lower than that of internal combustion forklifts, providing operators with a quiet and comfortable working environment and reducing noise pollution to the surrounding environment.
The low noise level makes communication between operators smoother, reducing communication misunderstandings and work errors caused by noise interference.
The compact design, small body size and small turning radius are suitable for flexible shuttle in narrow warehouse aisles, shelves and other places with limited space.
The control system is sensitive, and the operator can accurately control the forklift's driving speed, lifting height, fork tilt angle and other parameters through the control handle or pedal to achieve accurate handling and stacking of goods.model
Main parameters
|
Serial number |
Model |
Units |
CPD40 |
CPD40 | |
| 1 | Load | kg | 4000 | 5000 | |
| 2 | Wheelbase | mm | 1885 | 2045 | |
| 3 | Weight (including battery) | kg | 5300±200 | 6200±200 | |
| 4 | Drive wheel size (diameter x width) | mm | 250-15 | 250-15 | |
| 5 | Steering wheel size (diameter x width) | mm | 23x10-12 | 23x10-12 | |
| 6 | Mast height after lowering | mm | 2280 | 2300 | |
| 7 | Head guard (cockpit) height | mm | 2260 | 2260 | |
| 8 | Vehicle length | mm | 4195 | 4170 | |
| 9 | Overall width | mm | 1360 | 1360 | |
| 10 | Fork size | mm | 55x150x1220 | 55x150x1220 | |
| 11 | Minimum ground clearance | mm | 160 | 160 | |
| 12 | Minimum turning radius | mm | 2720 | 2800 | |
| 13 | Travel speed, fully loaded/unloaded | km/h | 12/13.5 | 12/13.5 | |
| 14 | Lifting speed, fully loaded/unloaded |
m/s |
0.28/0.4 | 0.28/0.4 | |
| 15 | Lowering speed, full load/no load | m/s | 0.45/0.4 | 0.45/0.4 | |
| 16 | Maximum climbing grade, full load/no load | % | 15 | 15 | |
| 17 | Drive motor rated power S2 60 minutes | KW | 12 | 18 | |
| 18 | Lifting motor rated power S3 15% | KW | 13.5 | 21 | |
| 19 | Drive control type | AC | AC | ||
Click to expand all content
Related products
Application scenarios
Logistics warehousing
Factories and warehouses
Buildings without elevators
Warehouse management
Factory workshops
Small warehouses
